Medical Dry Film Laser Imager Machine

Product Categories

McLantis Group

Contact Now

Contact Now

1. McLantis medical film printer offers superior image quality and value for CR/DR and multi-modality environments.

2. High speed image processing, networking and spooling are standard.

Medical Dry Film Laser Imager Machine

Printing technique	direct thermal imaging(easy daylight loading)
geometrical	320dpi (12.6pixel/mm)
film throughput	60sheets/hour(1417), 90sheets/hour(810)
resolution	12bit(4096 gradation)
film supply tray	2 supply trays,100 sheets per supply tray
film output tray	1 output tray, 50 sheets per output tray
film size	810inch,1417inch,and any size between them
film type	medical thermal film (blue or clear base)
film input cassette	all the film prepackaged in factory sealed input cassette
port	10/100base-T Ethemet(RJ-45)
interface	dicom
image format	dicom
image quality	use the built-in densitometer automatic calibration
image control	contrast/grayscale/polar/ratate/saturation/scale
control panel	light background LCD display,display online, alarm, fault and state
key switch	power supply and menu navigation button
processor	intel
internal memory	2 GB
disk capacity	320 GB
power requirements	auto ranging 100-240V~50/60 HZ
weight	40kg
*size (mmmmmm)*	410566726
work temperature	15-30°C
work humidity	10%-70%
optimum temperature	22.2°C
humidity	10%-80%
storage temperature	-22 to 50°C

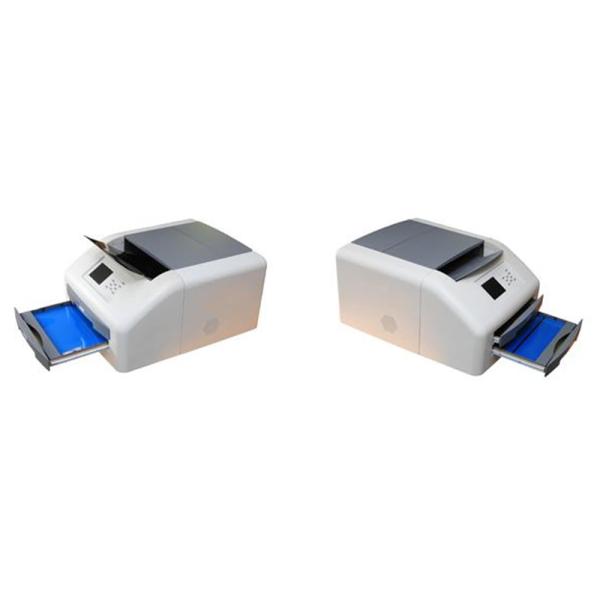

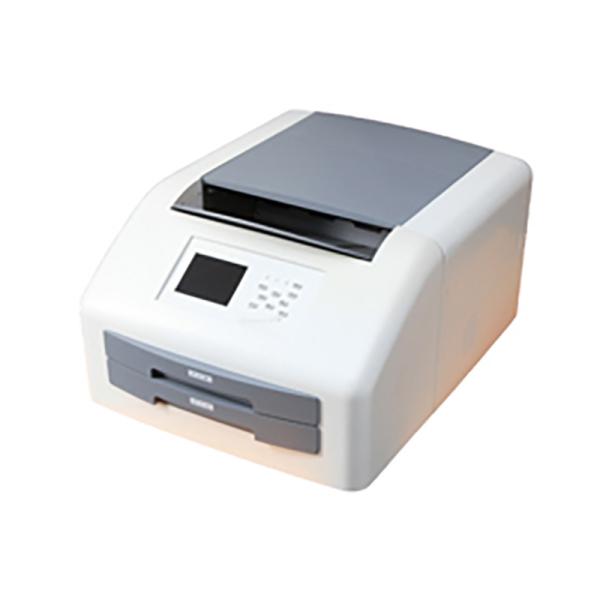

Medical Dry Film Laser Imager Machine Images
